Un ejemplo de Oracle Advanced Queue (DBMS AQ): Callback automático #JoelKallmanDay

-- Create user with necessary privileges
create user "AQ_DEMO" identified by "Password123*";
grant create session, create table, create type, create procedure to "AQ_DEMO";
grant execute on dbms_aqadm, dbms_aq to "AQ_DEMO";
grant unlimited tablespace to "AQ_DEMO";

create table sync_operations (
    id                number generated by default as identity primary key,
    source_system     varchar2(50) not null,
    target_system     varchar2(50) not null,
    sync_type         varchar2(30) not null,
    record_count      number not null,
    sync_status       varchar2(20) default 'COMPLETED',
    created_on        timestamp with local time zone default localtimestamp
);

create or replace type sync_task_type as object (
    source_system    varchar2(50),
    target_system    varchar2(50),
    sync_type        varchar2(30),
    record_count     number,
    priority         number
);

dbms_aqadm.create_queue_table(
    queue_table        => 'AQ_DEMO.SYNC_QUEUE_TABLE',
    queue_payload_type => 'AQ_DEMO.SYNC_TASK_TYPE',
    multiple_consumers => false,
    comment            => 'Tabla de cola para tareas de sincronización de datos'
);

-- Crear cola con configuración de reintento
dbms_aqadm.create_queue(
    queue_name     => 'AQ_DEMO.SYNC_QUEUE',
    queue_table    => 'AQ_DEMO.SYNC_QUEUE_TABLE',
    max_retries    => 3,        -- Reintentar mensajes fallidos 3 veces
    retry_delay    => 30,       -- Esperar 30 segundos entre reintentos
    retention_time => 3600,     -- Mantener mensajes por 1 hora
    comment        => 'Cola para tareas de sincronización con configuración de reintento'
);

create or replace procedure sync_callback(
    context   in raw
  , reginfo   in sys.aq$_reg_info
  , descr     in sys.aq$_descriptor
  , payloadl  in number
  , payload   in varchar2
) as
  l_message sync_task_type;
  l_dequeue_options dbms_aq.dequeue_options_t;
  l_message_props   dbms_aq.message_properties_t;
  l_message_id      raw(16);

  l_sync_type       varchar2(100);
begin
  dbms_output.put_line('Sync callback triggered at ' || to_char(systimestamp, 'HH24:MI:SS'));

  -- Configure dequeue options
  -- WAIT: Controls how long to wait for messages
  --   • NO_WAIT: Return immediately if no message available
  --   • FOREVER: [default] Wait indefinitely for a message
  --   • Number: Wait specified seconds (0-4294967295)
  l_dequeue_options.wait := dbms_aq.no_wait;

  -- NAVIGATION: Which message to retrieve from queue
  --   • FIRST_MESSAGE: [default] Get first available message
  --   • NEXT_MESSAGE: Get next message in sequence
  --   • FIRST_MESSAGE_MULTI_GROUP: First message across consumer groups
  --   • NEXT_MESSAGE_MULTI_GROUP: Next message across consumer groups
  --l_dequeue_options.navigation := dbms_aq.first_message;

  -- VISIBILITY: When dequeue operation becomes visible to other transactions
  --   • ON_COMMIT: [default] Changes visible only after transaction commit
  --   • IMMEDIATE: Changes visible immediately
  l_dequeue_options.visibility := dbms_aq.on_commit;

  -- DEQUEUE_MODE: What happens to the message after dequeue
  --   • BROWSE: Read message but keep it in queue
  --   • LOCKED: Lock message for exclusive access
  --   • REMOVE: [default] Delete message after reading
  --   • REMOVE_NODATA: Delete message but don't return payload
  l_dequeue_options.dequeue_mode := dbms_aq.remove;

  -- DELIVERY_MODE: How messages are stored and delivered
  --   • PERSISTENT: [default] Messages stored in database tables (durable)
  --   • BUFFERED: Messages kept in memory (faster)
  --   • PERSISTENT_OR_BUFFERED: Use either mode as appropriate
  --l_dequeue_options.delivery_mode := dbms_aq.persistent;

  -- Additional dequeue options available:
  -- l_dequeue_options.consumer_name := 'consumer_name';  -- Target specific consumer in multi-consumer queues
  -- l_dequeue_options.msgid := raw_message_id;           -- Dequeue specific message by its unique ID
  -- l_dequeue_options.correlation := 'correlation_id';   -- Filter messages by correlation identifier
  -- l_dequeue_options.deq_condition := 'priority > 5';   -- SQL WHERE condition to filter which messages to dequeue
  -- l_dequeue_options.transformation := 'transform_name'; -- Apply transformation function to message payload before returning

  -- Available descriptor properties for logging/debugging:
  -- descr.msg_id          - Message ID (RAW)
  -- descr.queue_name      - Queue name where message is located
  -- descr.consumer_name   - Consumer name (for multi-consumer queues)
  -- Note: msg_priority and msg_state are not directly available on descriptor


  --logger.log('msg_id: ' || descr.msg_id);
  --logger.log('queue_name: ' || descr.queue_name);
  --logger.log('consumer_name: ' || descr.consumer_name);
  --logger.log('payload: ' || payload);
  --logger.log('payloadl: ' || payloadl);

  l_dequeue_options.msgid := descr.msg_id;

  -- Dequeue the message
  dbms_aq.dequeue(
      queue_name         => 'AQ_DEMO.SYNC_QUEUE'
    , dequeue_options    => l_dequeue_options
    , message_properties => l_message_props
    , payload            => l_message
    , msgid              => l_message_id
  );
  l_sync_type := l_message.sync_type;

  -- Process the sync task
  insert into sync_operations (source_system, target_system, sync_type, record_count, sync_status)
  values (l_message.source_system, l_message.target_system, l_message.sync_type, l_message.record_count, 'COMPLETED');

  dbms_output.put_line('Sync operation completed: ' || l_message.source_system || ' -> ' || l_message.target_system);
  --commit;
exception
  when others then
    rollback;
    dbms_output.put_line('Error in sync callback: ' || sqlerrm);
    raise;
end;

create or replace procedure queue_sync_task(
    p_source_system in varchar2,
    p_target_system in varchar2,
    p_sync_type     in varchar2,
    p_record_count  in number,
    p_priority      in number default 5
) as
    l_enqueue_options dbms_aq.enqueue_options_t;
    l_message_props   dbms_aq.message_properties_t;
    l_message         sync_task_type;
    l_msgid           raw(16);
begin
    dbms_output.put_line('Encolando tarea de sincronización: ' || p_source_system || ' -> ' || p_target_system);

    -- Crear mensaje de tarea de sincronización
    l_message := sync_task_type(
        p_source_system, p_target_system,
        p_sync_type, p_record_count, p_priority
    );

    -- Opciones de encolado: visibilidad ON_COMMIT
    l_enqueue_options.visibility := dbms_aq.on_commit;

    -- Encolar la tarea
    dbms_aq.enqueue(
        queue_name         => 'AQ_DEMO.SYNC_QUEUE',
        enqueue_options    => l_enqueue_options,
        message_properties => l_message_props,
        payload            => l_message,
        msgid              => l_msgid
    );

    commit;
exception
    when others then
        rollback;
        dbms_output.put_line('Error encolando tarea de sincronización: ' || sqlerrm);
        raise;
end;

-- Queue different types of sync operations
begin
    queue_sync_task('CRM_SYSTEM', 'DATA_WAREHOUSE', 'INCREMENTAL', 1250, 3);
    queue_sync_task('ERP_SYSTEM', 'ANALYTICS_DB', 'FULL', 50000, 5);
    queue_sync_task('WEB_APP', 'BACKUP_SYSTEM', 'DELTA', 340, 1);
end;

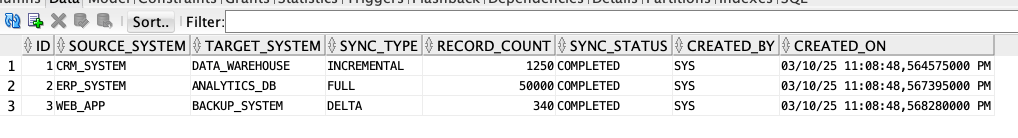

select
    source_system,
    target_system,
    sync_type,
    record_count,
    sync_status,
    created_on
from sync_operations
order by created_on desc;

-- Monitor queue status and retry counts
select
    treat(user_data as sync_task_type).source_system,
    treat(user_data as sync_task_type).target_system,
    enq_time,
    deq_time,
    retry_count,
    msg_state
from aq$sync_queue_table
order by enq_time desc;
