Integrando Oracle Jet 7.1 Gantt + Data dinámica + Oracle APEX 19.1 + AJAX

En este post integraremos la actual versión de Oracle JET 7.1 en Oracle APEX y usaremos AJAX para cargar la información de forma dinámica.

Demo

Descarga App: GDrive

Para este ejemplo usaremos el control Gantt del CookBook de JET

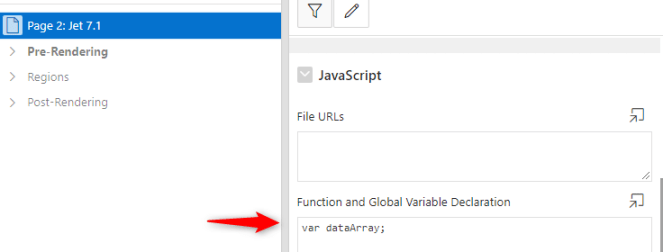

En la hoja creamos una variable que será nuestro enlace de la data.

Agregamos la referencia de CSS

#JET_CSS_DIRECTORY#/alta/oj-alta-notag-min.css

Agregamos la librería de requireJS

APEX_JAVASCRIPT.add_requirejs();

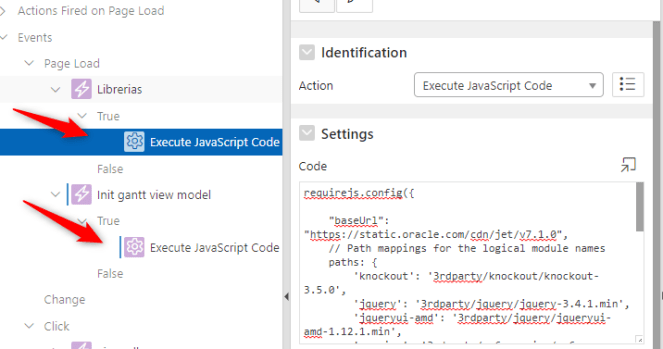

En el page load creamos dos acciones dinámicas, en una cargamos las librerías de JET 7.1

requirejs.config({

\"baseUrl\": \"https://static.oracle.com/cdn/jet/v7.1.0\",
// Path mappings for the logical module names
paths: {
\'knockout\': \'3rdparty/knockout/knockout-3.5.0\',
\'jquery\': \'3rdparty/jquery/jquery-3.4.1.min\',
\'jqueryui-amd\': \'3rdparty/jquery/jqueryui-amd-1.12.1.min\',
\'promise\': \'3rdparty/es6-promise/es6-promise.min\',
\'hammerjs\': \'3rdparty/hammer/hammer-2.0.8.min\',
\'ojdnd\': \'3rdparty/dnd-polyfill/dnd-polyfill-1.0.0.min\',
\'ojs\': \'default/js/min\',
\'ojL10n\': \'default/js/ojL10n\',
\'ojtranslations\': \'default/js/resources\',
\'text\': \'3rdparty/require/text\',
\'signals\': \'3rdparty/js-signals/signals.min\',
\'customElements\': \'3rdparty/webcomponents/custom-elements.min\',
\'proj4\': \'3rdparty/proj4js/dist/proj4\',
\'css\': \'3rdparty/require-css/css.min\',
\'touchr\': \'3rdparty/touchr/touchr\'
},
// Shim configurations for modules that do not expose AMD
shim: {
\'jquery\': {
exports: [\'jQuery\', \'$\']
}
}
});

Y en otra acción dinámica el código del ViewModel, el código fue extraído de la guía del cookbook de Oracle JET.

Aquí se han modificado los siguientes puntos:

— La función recibe un parámetro que es la data para usar en el Gantt

function ViewModel(dataArray)

— El construcctor recibe el parametro de la data.

this.dataProvider = new ArrayDataProvider(dataArray, {keyAttributes: \'id\'});

— Para los path de las images se estan usando link de images online

 this.rowLabelImagePath = { \'Flag1\' ....

— dataArray se inicializa como:

dataArray = ko.observableArray([]);

Código ViewModel

  require([\'knockout\', \'ojs/ojbootstrap\', \'ojs/ojarraydataprovider\', \'ojs/ojknockout\', \'ojs/ojgantt\'],
function(ko, Bootstrap, ArrayDataProvider)
{
function ViewModel(dataArray)
{
this.dataProvider = new ArrayDataProvider(dataArray, {keyAttributes: \'id\'});
this.projectStartDate = new Date(\"Jan 1, 2019\");
this.projectEndDate = new Date(\"Dec 31, 2019\");

this.currentDateString = \"Apr 15, 2019\";
this.currentDate = new Date(this.currentDateString);

// set viewport to center around the reference object
var month = 1000 * 60 * 60 * 24 * 30;
this.viewportStart = new Date(Math.max(this.projectStartDate.getTime(), this.currentDate.getTime() - 3*month));
this.viewportEnd = new Date(Math.min(this.projectEndDate.getTime(), this.currentDate.getTime() + 3*month));

// Helper function to get appropriate row label image x position depending on document reading direction
this.getRowImageX = function() {
var dir = document.documentElement.getAttribute(\"dir\");
return dir === \'ltr\' ? \'0\' : \'0\';
};

// Helper function to get appropriate row label text x position depending on document reading direction
this.getRowTextX = function() {
var dir = document.documentElement.getAttribute(\"dir\");
return dir === \'ltr\' ? \'30\' : \'25\';
};

this.getRowTextAnchor = function() {
var dir = document.documentElement.getAttribute(\"dir\");
var userAgent = navigator.userAgent.toLowerCase();
var isIE = userAgent.indexOf(\'trident\') != -1 || userAgent.indexOf(\'msie\') != -1 || userAgent.indexOf(\'edge\') != -1;
// Unlike other browsers, IE11 and Edge treats left side of svg text as start in RTL,
// so set text-anchor to end to achieve consistent behavior
return dir === \'rtl\' && isIE ? \'end\' : \'start\';
};

this.rowLabelImagePath = {
\'Flag1\': \'https://raw.githubusercontent.com/stefangabos/world_countries/master/flags/24x24//pe.png\',
\'Flag2\': \'https://raw.githubusercontent.com/stefangabos/world_countries/master/flags/24x24//pw.png\',
\'Flag3\': \'https://raw.githubusercontent.com/stefangabos/world_countries/master/flags/24x24//aq.png\',
\'Flag4\': \'https://raw.githubusercontent.com/stefangabos/world_countries/master/flags/24x24//bg.png\',
\'Flag5\': \'https://raw.githubusercontent.com/stefangabos/world_countries/master/flags/24x24//bl.png\',
\'Flag6\': \'https://raw.githubusercontent.com/stefangabos/world_countries/master/flags/24x24//ch.png\',
\'Flag7\': \'https://raw.githubusercontent.com/stefangabos/world_countries/master/flags/24x24//es.png\',
\'Flag8\': \'https://raw.githubusercontent.com/stefangabos/world_countries/master/flags/24x24//gg.png\',
\'Flag9\': \'https://raw.githubusercontent.com/stefangabos/world_countries/master/flags/24x24//id.png\',
\'Flag10\': \'https://raw.githubusercontent.com/stefangabos/world_countries/master/flags/24x24//lt.png\',
};
}

Bootstrap.whenDocumentReady().then(
function()
{
dataArray = ko.observableArray([]);
ko.applyBindings(new ViewModel(dataArray), document.getElementById(\'gantt\'));
}
);
}
);

Creamos una región estática y agregamos el CSS de la región Gantt


 <div id=\"componentDemoContent\" style=\"width: 1px; min-width: 100%;\">

<oj-gantt id=\"gantt\"
axis-position=\"bottom\"
start=\"[[projectStartDate.toISOString()]]\"
end=\"[[projectEndDate.toISOString()]]\"
gridlines.horizontal=\"visible\"
gridlines.vertical=\"visible\"
major-axis.scale=\"months\"
major-axis.zoom-order=\'[\"quarters\", \"months\", \"weeks\", \"days\"]\'
minor-axis.scale=\"weeks\"
minor-axis.zoom-order=\'[\"quarters\", \"months\", \"weeks\", \"days\"]\'
row-axis.rendered=\"on\"
selection-mode=\"single\"
reference-objects=\'[[[{\"value\": currentDate.toISOString()}]]]\'
viewport-start=\"[[viewportStart.toISOString()]]\"
viewport-end=\"[[viewportEnd.toISOString()]]\"
task-data=\"[[dataProvider]]\"
:aria-label=\'[[\"Gantt Chart. Current date is \" + currentDateString]]\'
style=\"width:100%;height:500px\">
<template slot=\"rowTemplate\" data-oj-as=\"row\">
<oj-gantt-row
label=\"[[row.id]]\">
</oj-gantt-row>
</template>
<template slot=\"taskTemplate\" data-oj-as=\"task\">
<oj-gantt-task
row-id=\"[[task.data.resource]]\"
start=\"[[task.data.begin]]\"
end=\"[[task.data.finish]]\"
label=\"[[task.data.name]]\">
</oj-gantt-task>
</template>
<template slot=\"rowAxisLabelTemplate\" data-oj-as=\"rowAxisLabel\">
<svg style=\"overflow:visible\">
<g>
<image
:xlink:href=\'[[rowLabelImagePath[rowAxisLabel.rowData.id.replace(\" \", \"\")]]]\'
xlink:href=\"\"
😡=\"[[getRowImageX()]]\"
width=\"24\" height=\"24\">
</image>
<text
😡=\"[[getRowTextX()]]\"
y=\"16\"
:text-anchor=\"[[getRowTextAnchor()]]\">
<oj-bind-text value=\"[[rowAxisLabel.rowData.label]]\"></oj-bind-text>
</text>
</g>
</svg>
</template>
</oj-gantt>


</div>

Creamos un botón y lo definimos con una acción dinámica que ejecutara un JavaScript, la cual es la llamada AJAX

    apex.server.process(\"LOAD_DATA\", {
},
{
success: function(pData) {
console.log(pData);
dataArray(pData);
}
}
); // apex process

Creamos nuestro AjaxCallback

Por motivos didáctivos estoy usando unos select dentro de un for para generar data de forma dinámica.

declare
l_begin_date date;
l_end_date date;
begin
apex_json.open_array();
-- for generate random data
for i in 1..20
loop
-- tasks 1
select TO_DATE(TRUNC(DBMS_RANDOM.VALUE(TO_CHAR(DATE \'2019-01-01\',\'J\'),TO_CHAR(DATE \'2019-12-31\',\'J\'))),\'J\' ) random_date
into l_begin_date
from dual;

select TO_DATE(TRUNC(DBMS_RANDOM.VALUE(TO_CHAR(l_begin_date,\'J\'),TO_CHAR(DATE \'2019-12-31\',\'J\'))),\'J\' ) random_date
into l_end_date
from dual;

apex_json.open_object;
apex_json.write(\'id\', \'task1-\'||i);
apex_json.write(\'begin\', l_begin_date );
apex_json.write(\'finish\', l_end_date);
apex_json.write(\'name\', \'Label 1-\'||i);
apex_json.write(\'resource\', \'Flag\'||i);
apex_json.close_object;

-- tasks 2
select TO_DATE(TRUNC(DBMS_RANDOM.VALUE(TO_CHAR(DATE \'2019-01-01\',\'J\'),TO_CHAR(DATE \'2019-12-31\',\'J\'))),\'J\' ) random_date
into l_begin_date
from dual;

select TO_DATE(TRUNC(DBMS_RANDOM.VALUE(TO_CHAR(l_begin_date,\'J\'),TO_CHAR(DATE \'2019-12-31\',\'J\'))),\'J\' ) random_date
into l_end_date
from dual;

apex_json.open_object;
apex_json.write(\'id\', \'task1-\'||i);
apex_json.write(\'begin\', l_begin_date );
apex_json.write(\'finish\', l_end_date);
apex_json.write(\'name\', \'Label 1-\'||i);
apex_json.write(\'resource\', \'Flag\'||i);
apex_json.close_object;
end loop;

apex_json.close_array();
end;

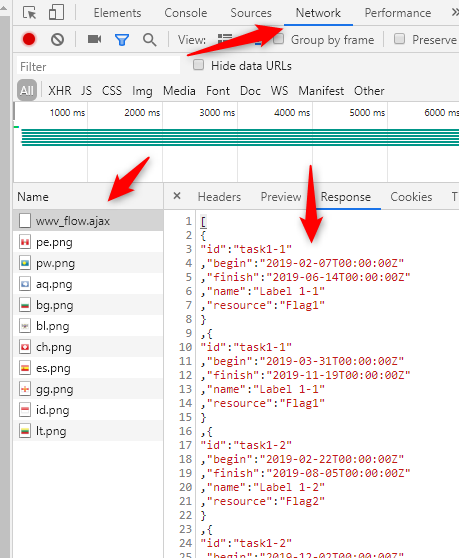

En el network la llamada ajax debe tener la siguiente estructura, la misma del ejemplo del cookbook.

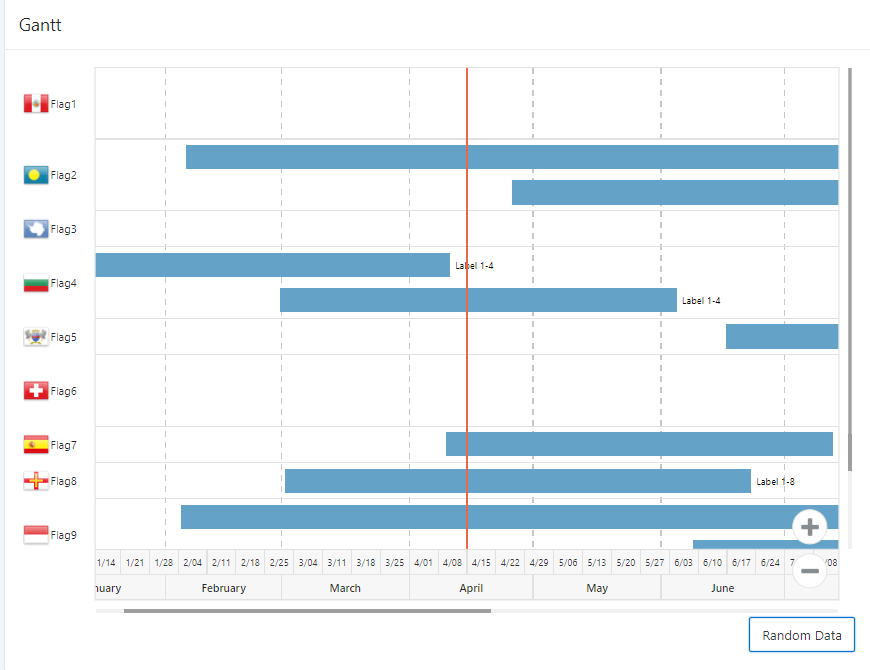

Y finalmente el resultado
